Fisher Gold Bug DP Metal Detector

Fisher Gold Bug 2 Metal Detector – New Digital Version: An Easy Guide

The Fisher Gold Bug 2 Metal Detector is renowned for its ultra-high sensitivity to small gold nuggets. Making it a favorite among gold prospectors. The New Digital Version enhances this classic detector with modern technology. Making it even more reliable and user-friendly. This guide provides an overview of the Fisher Gold Bug 2’s key features, technical specifications, and tips for effective use. All in a format that’s easy to read and understand.

Key Features of the Fisher Gold Bug 2

Ultra-High Frequency Detection

The Fisher Gold Bug 2 operates at an industry-leading frequency of 71 kHz. Giving it exceptional sensitivity to small gold nuggets and flakes. This high frequency allows it to detect even the tiniest gold particles that other detectors might miss. It’s particularly effective in areas with fine, gold-bearing soils. Where traditional detectors struggle to pick up small targets.

New Digital Enhancements

The New Digital Version of the Gold Bug 2 incorporates modern digital technology for improved performance. These enhancements include digital signal processing (DSP) for more accurate target. Identification and better discrimination between gold and other metals. The digital interface also provides more precise control over settings. Making it easier to fine-tune the detector for specific conditions.

Iron Discrimination Mode

One of the standout features of the Gold Bug 2 is its Iron Discrimination Mode. This mode allows users to filter out iron targets, focusing solely on finding gold. The ability to discriminate against iron is particularly. Useful in areas littered with trash or in mining sites where iron-rich rocks are common. By reducing the number of false signals, you can spend more time digging for gold and less time on unwanted targets.

Three-Position Mineralization Switch

The Gold Bug 2 is equipped with a three-position mineralization switch. Allowing users to adjust the detector’s sensitivity based on the ground conditions. The switch has three settings: Normal, Low, and High.

• Normal is ideal for average soil conditions.

• Low is best for heavily mineralized soils. Reducing the detector’s sensitivity to ground minerals while still detecting gold.

• High increases sensitivity for maximum depth in mild soil conditions.

Lightweight and Ergonomic Design

The Fisher Gold Bug 2 is designed with user comfort in mind. It features a lightweight and ergonomic design that makes it easy to carry and use for extended periods. Weighing just 2.9 pounds (1.3 kg), it’s one of the lightest metal detectors in its class, allowing you to search for gold for hours without fatigue. The adjustable armrest and padded handle further enhance comfort during use.

Technical Specifications

• Operating Frequency: 71 kHz

• Sensitivity: Ultra-high sensitivity to small gold nuggets

• Discrimination: Iron Discrimination Mode with three-position switch

• Ground Balance: Manual ground balance with three-position mineralization switch

• Audio Output: Built-in speaker and 1/4″ headphone jack

• Power Source: Two 9-volt batteries (approximately 25-35 hours of use)

• Weight: 2.9 pounds (1.3 kg)

• Search Coil: 6.5″ elliptical waterproof coil (optional coils available)

• Warranty: 5 years

How to Use the Fisher Gold Bug 2

Setup and Assembly

1. Assemble the Detector: Start by attaching the search coil to the lower shaft. Adjust the shaft length to a comfortable height and secure the coil cable around the shaft.

2. Install Batteries: Open the battery compartment and insert two 9-volt batteries. Ensure the polarity is correct, and close the compartment securely.

3. Power On: Turn on the detector by rotating the sensitivity knob. The detector will emit a beep to indicate that it’s powered on.

4. Adjust Ground Balance: Use the ground balance knob to fine-tune the detector to the soil conditions. Start with the normal setting and adjust based on the mineralization of the soil.

5. Set Discrimination: Switch to Iron Discrimination Mode if you’re in an area with a lot of iron trash. Otherwise, keep it in all-metal mode for maximum sensitivity to gold.

Searching for Gold

• Sweep Method: Sweep the detector slowly and evenly across the ground. Keep the search coil parallel to the ground and avoid lifting it at the end of each sweep.

• Listen for Signals: The Gold Bug 2 will emit a higher-pitched tone when it detects a target. The stronger the signal, the closer you are to the gold. Use the signal strength to pinpoint the exact location of the target.

• Adjust Settings:. If you’re getting a lot of false signals, try adjusting the ground balance or switching to a lower mineralization setting. You can also reduce the sensitivity slightly to filter out small, unwanted targets.

Tips for Effective Use

• Practice Ground Balancing: Proper ground balancing is crucial for the Gold Bug 2’s performance. Spend time practicing this in different soil conditions to get the best results.

• Use Headphones:. The built-in speaker is adequate, but using headphones can help you hear faint signals more clearly. Especially in noisy environments.

• Search in All-Metal Mode:. For maximum sensitivity. search in all-metal mode and only use the discrimination mode when you’re confident that iron trash is a problem.

• Check for Updates:. Since this is a digital version, periodically. Check for firmware updates that might improve performance or add new features.

Operating in Different Environments

• Desert Areas: The Gold Bug 2 excels in desert environments where fine gold particles are common. Use the high mineralization setting to counteract the effects of hot rocks.

• Forest and Mountainous Areas: The lightweight design makes it easy to carry in rugged terrain. Use the normal or low mineralization setting depending on soil conditions.

• Streams and Rivers: The waterproof coil allows for shallow water detection. Be sure to check the sensitivity to avoid false signals from wet, mineralized ground.

Maintenance and Care

Cleaning the Detector

After each use, wipe down the search coil and control box with a damp cloth. Avoid using harsh chemicals, as these can damage the electronics. If the coil gets dirty, rinse it with water and dry it thoroughly before storage.

Battery Maintenance

Remove the batteries if the detector will not be used for an extended period. This prevents battery leakage, which can damage the detector’s internal components.

Regular Inspections

Periodically inspect the coil cable and connections for wear or damage. Ensure that all parts are securely attached and that there are no loose connections.

Conclusion

The Fisher Gold Bug 2 Metal Detector – New Digital Version is a powerful and versatile tool for gold prospectors. Its ultra-high frequency, advanced digital features, and lightweight design. Make it one of the best detectors for finding small gold nuggets. By following the tips and guidelines in this guide, you can maximize the performance of your Gold Bug 2 and increase your chances of striking. It rich in your next gold-hunting adventure.

4o

You said:

Fisher Gold Bug DP Metal Detector info ezy reed for wepsaid 700 words with hadings

ChatGPT said:

ChatGPT

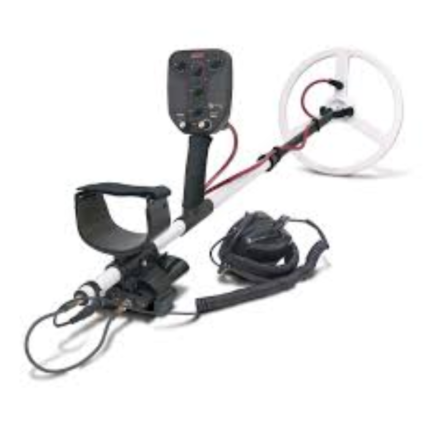

Fisher Gold Bug DP Metal Detector: Easy-to-Understand Guide

The Fisher Gold Bug DP Metal Detector is designed for those who are serious about finding gold and other valuable metals. Known for its high sensitivity, accuracy, and user-friendly design. The Gold Bug DP is a popular choice among both novice and experienced treasure hunters. This guide will walk you through the key features. Technical specifications, and tips on how to use this detector effectively, all in an easy-to-read format.

Key Features of the Fisher Gold Bug DP

High Sensitivity to Gold

One of the standout features of the Fisher Gold Bug DP is its exceptional sensitivity to gold. Operating at a frequency of 19 kHz, this detector is finely tuned to pick up small gold nuggets that other detectors might miss. Whether you’re searching in heavily mineralized ground or areas with fine gold, the Gold Bug DP delivers reliable results.

Large, Easy-to-Read Display

The Gold Bug DP is equipped with a large, backlit LCD display that provides clear and easy-to-read information. The display shows target ID numbers, ground phase readings, and other critical information at a glance. The target ID ranges from 0 to 99, with higher numbers typically indicating more conductive metals like silver. While lower numbers suggest iron or other less conductive materials.

Dual-Mode Operation

This detector features dual-mode operation. Allowing you to switch between Discrimination Mode and All-Metal Mode. In Discrimination Mode, you can filter out unwanted targets, such as iron or trash, focusing on the metals you’re interested in. All-Metal Mode, on the other hand, provides maximum depth and sensitivity, making it ideal for detecting small gold nuggets.

Ground Balancing for Varied Terrains

The Fisher Gold Bug DP includes manual and automatic ground balancing. Ensuring optimal performance across different types of terrain. Ground balancing is crucial when detecting in areas with high mineral content. As it helps to reduce false signals caused by the ground itself. The automatic ground balance feature simplifies the process for beginners. While the manual option offers more control for experienced users.

Lightweight and Ergonomic Design

Weighing just 2.5 pounds (1.13 kg), the Fisher Gold Bug DP is lightweight and easy to handle. Its ergonomic design includes an adjustable armrest and a padded handle. Allowing for comfortable use during extended detecting sessions. The compact size and low weight make it easy to carry, even in rough terrain.

Pinpointing Feature

The Gold Bug DP also includes a pinpointing feature that helps you zero in on targets with precision. Once a target is detected, you can activate the pinpoint mode to locate its exact position, reducing the amount of digging required.

Technical Specifications

• Operating Frequency: 19 kHz

• Sensitivity: High sensitivity to small gold nuggets

• Discrimination: Adjustable discrimination with target ID

• Ground Balance: Manual and automatic ground balancing

• Audio Output: Built-in speaker and 1/4″ headphone jack

• Power Source: Single 9-volt battery (approximately 15-20 hours of use)

• Weight: 2.5 pounds (1.13 kg)

• Search Coil: 11″ Double-D waterproof coil

• Warranty: 5 years

How to Use the Fisher Gold Bug DP

Assembly and Setup

1. Assemble the Detector: Start by attaching the 11″ Double-D search coil to the lower shaft. Secure the coil cable around the shaft, ensuring it’s not loose.

2. Install the Battery: Open the battery compartment located on the control box and insert a 9-volt battery. Ensure it’s seated properly and close the compartment.

3. Power On: Turn on the detector by pressing the power button. The LCD display will light up, and the detector will emit a sound to indicate it’s operational.

4. Adjust Ground Balance: If you’re new to metal detecting, use the automatic ground balance feature. For more experienced users, manually adjust. The ground balance using the control knob for specific soil conditions.

5. Select Operating Mode:. Choose between Discrimination Mode and All-Metal Mode based on your detecting environment. Discrimination Mode is ideal for areas with a lot of trash, while All-Metal Mode is better for maximum depth detection.

Detecting Tips

• Sweep Technique: Move the search coil slowly and steadily across the ground, keeping it parallel to the surface. Avoid lifting the coil at the end of each sweep, as this can affect detection depth.

• Listen for Tones: The detector emits different tones based on the type of metal detected. A high-pitched tone usually indicates a more valuable target, while a low-pitched tone may suggest iron or trash.

• Monitor the Display: Keep an eye on the target ID numbers displayed on the screen. Higher numbers typically indicate more valuable metals. Use this information to decide whether to dig.

• Use Pinpoint Mode: Once you’ve detected a target, switch to pinpoint mode to locate the exact spot. This reduces the amount of digging and helps you recover targets more efficiently.

Operating in Different Environments

• Mineralized Soils: Use the ground balance feature to adjust for highly mineralized soils. This will help reduce false signals and improve detection accuracy.

• Wet Conditions: The Gold Bug DP’s search coil is waterproof, making it suitable for detecting in shallow water or wet conditions. However, be sure to keep the control box dry.

• Trashy Areas: In areas with a lot of metal debris, use the discrimination feature to filter out unwanted targets. Adjust the discrimination level based on the types of trash present.

Maintenance and Care

Cleaning

After each use, wipe down the search coil and control box with a soft, damp cloth. Avoid using harsh chemicals, as they can damage the device. If the coil gets particularly dirty, rinse it with water and dry it thoroughly before storing it.

Battery Maintenance

Remove the battery if the detector won’t be used for an extended period. This prevents corrosion and ensures the detector is ready to go when you need it.

Regular Inspections

Periodically check the coil cable and connections for wear or damage. Ensure that all parts are securely attached and functioning properly. If you notice any issues, address them promptly to avoid affecting the detector’s performance.

Conclusion

The Fisher Gold Bug DP Metal Detector is a powerful tool designed to help you find gold and other valuable metals with ease. Its high sensitivity, dual-mode operation, and ergonomic design. Make it suitable for both beginners and experienced users. By following the tips and guidelines in this guide. You can maximize the performance of your Gold Bug DP and increase your chances of discovering. Hidden treasures on your next adventure. Whether you’re hunting for gold nuggets in the desert or searching for relics in an old battlefield. The Fisher Gold Bug DP is a reliable and efficient metal detector that won’t let you down.

Personal Experience

I have Personally used this detector. It gives you a good depth into the ground. it is a very strong detector it doesn’t matter if dropped it is made of good quality it also gives you a good drop. Also gives you warranty. Initially it gives you little problem to operate but once you get the hang of it then it becomes very easy. for you first I learned it my self and then it It is very easy to use and Good metal detector on the ground.
