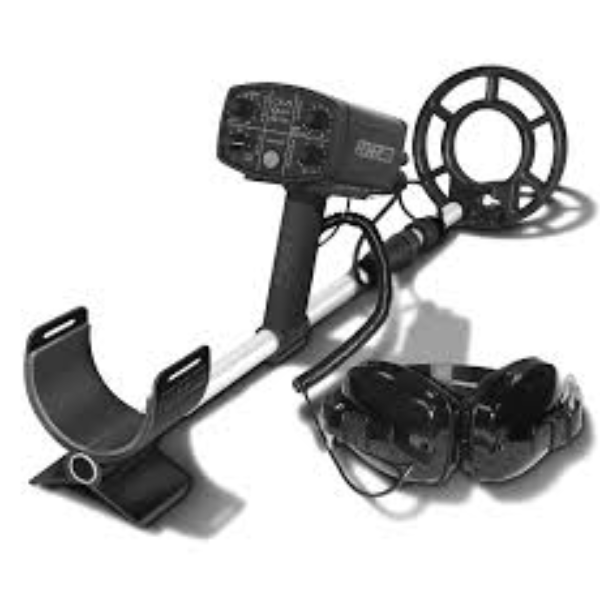

Fisher CZ21 Quicksilver Metal Detector: Comprehensive Guide

Introduction

The Fisher CZ21 Quicksilver Metal Detector is a highly versatile and durable detector designed. For both underwater and land-based treasure hunting. Known for its exceptional depth detection and ability to discriminate between different metals. The CZ21 is favored by professional treasure hunters and serious hobbyists alike. Its rugged design and advanced features make it suitable for use in a variety of environments, from sandy beaches to deep waters. This guide provides a detailed overview of the Fisher CZ21, covering its features. Specifications, and practical usage tips.

Features

Dual Frequency VLF Technology

The Fisher CZ21 operates on dual frequency Very Low Frequency (VLF) technology, utilizing both 5 kHz and 15 kHz frequencies. This dual-frequency capability allows the detector to detect a wide range of metal objects. With high sensitivity while providing excellent discrimination between different types of metals. The lower frequency (5 kHz) is ideal for detecting larger, deeper targets. While the higher frequency (15 kHz) is more sensitive to smaller objects such as gold nuggets and jewelry.

Waterproof and Submersible Design

One of the standout features of the Fisher CZ21 is its fully waterproof design, allowing it to be submerged to depths of up to 250 feet (76 meters). This makes it an excellent choice for underwater treasure hunting. including diving, snorkeling, and searching in rivers, lakes, and oceans. The detector’s robust, waterproof housing is built to withstand. The rigors of underwater exploration. ensuring reliability in harsh conditions.

Advanced Target ID and Discrimination

The CZ21 is equipped with advanced target identification and discrimination features. Allowing users to accurately identify different types of metals before digging. The detector uses a nine-segment visual ID system combined with audio tones to classify targets as iron, foil, nickel, pull tabs, zinc, and coins. This helps users avoid digging up unwanted trash and focus on valuable targets.

Pinpoint Mode

The Fisher CZ21 includes a pinpoint mode that allows users to zero in on a target’s exact location. By pressing the pinpoint button, the detector switches to a non-motion mode, providing a continuous signal as long as the button is held down. This feature is particularly useful for recovering small or deeply buried objects. Making the digging process more precise and efficient.

Superior Depth Detection

Thanks to its dual-frequency operation and high-quality search coil. The Fisher CZ21 offers superior depth detection capabilities. It can detect coins and other small objects at depths of up to 8-12 inches (20-30 cm) in typical soil conditions. And larger objects can be detected at even greater depths. This makes it ideal for locating deeply buried treasures that other detectors might miss.

Three-Tone Audio ID

The CZ21 features a three-tone audio ID system that emits different tones based on the type of metal detected. Low tones indicate ferrous metals like iron, mid-tones suggest pull tabs and gold. While high tones signal the presence of coins and other high-conductivity metals. This audio discrimination system. Allows users to quickly and easily identify potential targets. Without constantly watching the display.

Long Battery Life

Powered by four 9V batteries, the Fisher CZ21 provides up to 50 hours of continuous operation. Depending on usage and environmental conditions. The detector also features a low battery indicator, ensuring that users are aware when the power is running low. This long battery life is especially beneficial for extended treasure hunting sessions.

Easy-to-Use Controls

The control panel of the Fisher CZ21 is straightforward and user-friendly. Featuring knobs for power, sensitivity, volume, and discrimination. This simplicity makes the detector easy to operate, even for beginners. While still offering advanced features that experienced users will appreciate.

Specifications

• Technology: Dual Frequency VLF

• Operating Frequencies: 5 kHz and 15 kHz

• Waterproof Depth: Up to 250 feet (76 meters)

• Battery Life: Up to 50 hours (4x 9V batteries)

• Weight: 5.8 pounds (2.6 kg)

• Sensitivity: Adjustable

• Discrimination: Adjustable with visual ID and audio tones

• Indicators: Three-tone audio ID and visual target ID

• Length: Adjustable shaft

• Coil: 8-inch or 10.5-inch search coil options

How to Use the Fisher CZ21

Assembly and Preparation

1. Install Batteries: Begin by inserting four 9V batteries into the battery compartment. Ensure that the batteries are correctly. Aligned and the compartment is securely closed to maintain waterproof integrity.

2. Assemble the Shaft: Attach the search coil to the lower shaft, and adjust the shaft length for comfortable use. Tighten all bolts to secure the components.

3. Power On: Turn the power knob to switch on the detector. The device will emit a tone to indicate it is ready for operation.

Adjusting Sensitivity and Discrimination

1. Sensitivity: Use the sensitivity knob to adjust the detector’s sensitivity. Higher sensitivity settings will detect deeper targets but may also increase. Interference in mineralized environments. Adjust the sensitivity according to the site conditions.

2. Discrimination: Set the discrimination level to filter out unwanted metals. Begin with a lower setting and gradually increase it to reject specific. Metals such as iron while retaining valuable targets like coins and jewelry.

Underwater and Land Operation

1. Grip and Sweep: Hold the detector by the handle and sweep the search coil slowly over the ground or underwater terrain. Keep the coil parallel to the surface and maintain a consistent speed for optimal detection.

2. Monitor Alerts: Pay attention to the audio tones and visual ID display. The combination of these alerts will help you determine whether to dig a target or move on.

3. Pinpointing: Use the pinpoint mode to accurately locate the target’s position. Hold the pinpoint button while moving the coil over the target area until the audio signal is strongest.

Recovery of Targets

1. Mark the Spot:. Once a target is identified, mark the location if necessary. Especially in underwater environments where visibility might be limited.

2. Excavation: Use a scoop or digging tool to carefully excavate the target. In underwater settings, the detector’s waterproof design. Allows you to submerge the coil completely without risk of damage.

3. Double-Check: After recovering the target, scan the area again to ensure no additional items are present.

Tips for Effective Use

Practice in Various Environments

To get the most out of the Fisher CZ21, practice in different environments such as sandy beaches. Rocky terrains, and underwater settings. This will help you become familiar with how the detector responds to different conditions and types of targets.

Monitor Battery Life

Before heading out, always check the battery life and carry spare 9V batteries if you plan to be out for an extended period. The low battery indicator will help you avoid unexpected power loss during critical moments.

Experiment with Discrimination Settings

Different environments and target types may require adjustments to the discrimination settings. Don’t hesitate to experiment with different levels to find the optimal setting for your specific hunting location.

Clean After Use

After each use, particularly in saltwater environments, rinse the Fisher CZ21 with fresh water to remove any sand, salt, or debris. This helps maintain the detector’s performance and extends its lifespan.

Common Issues and Troubleshooting

False Signals

If you encounter false signals. Try lowering the sensitivity or adjusting the discrimination settings. Ensure that the search coil is clean and that the cables are securely connected.

Unresponsive Controls

If the controls become unresponsive, turn the detector off and on again. Check the battery compartment for proper alignment and replace the batteries if necessary.

Depth Detection Issues

If the detector seems to lose depth detection capability, ensure the coil is clean and free from obstructions. Check the battery levels and replace them if they are low.

Conclusion

The Fisher CZ21 Quicksilver Metal Detector is a top-tier device for treasure hunters who require. Reliable performance in both underwater and land-based environments. With its dual-frequency technology. Robust waterproof design, and advanced discrimination features. The CZ21 offers exceptional versatility and depth detection. By following the tips and guidelines in this guide. You can enhance your detecting experience and increase. Your chances of discovering valuable treasures. Whether you are diving deep or exploring on land, the Fisher CZ21 is a powerful tool that will serve you well in your treasure-hunting adventures.

Personal Experience

I have Personally used this detector. It gives you a good depth into the ground. it is a very strong detector it doesn’t matter if dropped it is made of good quality it also gives you a good drop. Also gives you warranty. Initially it gives you little problem to operate but once you get the hang of it then it becomes very easy. for you first I learned it my self and then it It is very easy to use and Good metal detector on the ground.
